Product Catalog

Engineered for precision. Built for extreme reliability. Explore our full range of safety standard-certified industrial components.

All Products Certificates Cable AMPAC Discovery Product Guide Straps Clamps Hangers Couplings and Fittings Threaded Rod Hemp Rolls Hole Saw Gal Mal Pipe Extinguishers Sprinkler Spare Boxes Fire Blanket Heat Collector Plate Flexible Hose Sprinklers Fire Hoses / Nozzle Breeching Inlet Hydrants Landing Valves Hose Reels / Ancillary Valves / Ancillary

Sort by

Sprinklers
Concealed Pendent Sprinkler, Quick Response (3mm Glass Bulb)

Concealed Pendent Sprinkler, Quick Response (3mm Glass Bulb)

K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Flat-plate concealed pendent, standard coverage; Thread: 1/2" NPT / 1/2" BSPT; Approval: UL; Max working pressure: 175 PSI (12 bar); Factory test pressure: 500 PSI (35 bar); Min operating pressure: 7 PSI (0.5 bar); Temperature: cover plate 135F (57C) or 165F (74C); sprinkler 135F (57C), 155F (68C), 175F (79C), 200F (93C); Cover plate finishes: white coating, chrome, bright brass, brass and customized; Recommended torque max 14 ft-lb; Response: Quick Response; Thermosensitive element: 3mm glass bulb

View Details
Sprinklers

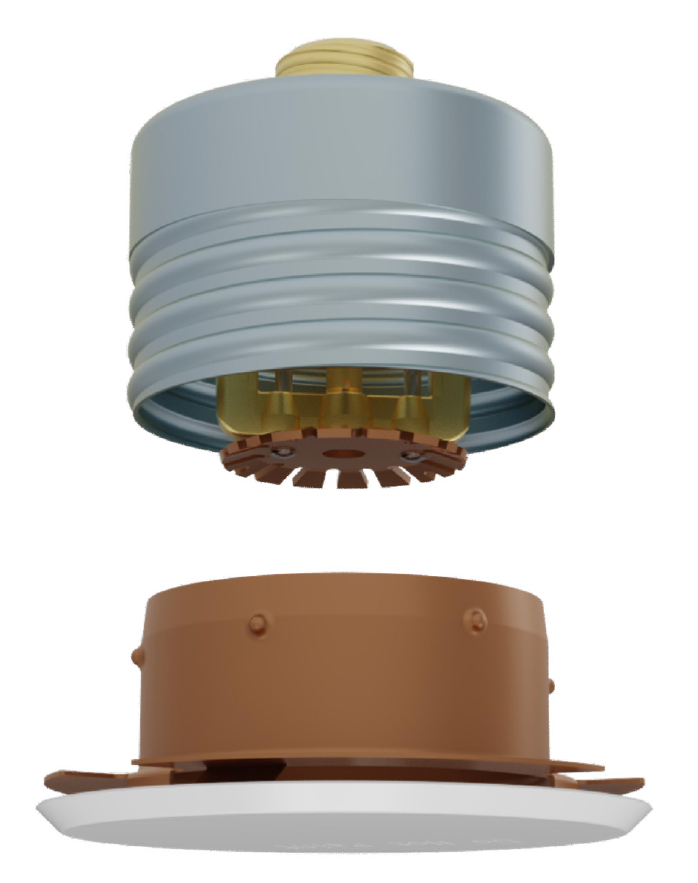

Concealed Pendent Sprinkler, Standard Response (5mm Glass Bulb)

Concealed Pendent Sprinkler, Standard Response (5mm Glass Bulb)

K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Flat-plate concealed pendent, standard coverage; Thread: 1/2" NPT / 1/2" BSPT; Approval: UL; Max working pressure: 175 PSI (12 bar); Factory test pressure: 500 PSI (35 bar); Min operating pressure: 7 PSI (0.5 bar); Temperature: cover plate 135F (57C) or 165F (74C); sprinkler 135F (57C), 155F (68C), 175F (79C), 200F (93C); Cover plate finishes: white coating, chrome, bright brass, brass and customized; Recommended torque max 14 ft-lb; Response: Standard Response; Thermosensitive element: 5mm glass bulb

View Details
Sprinklers

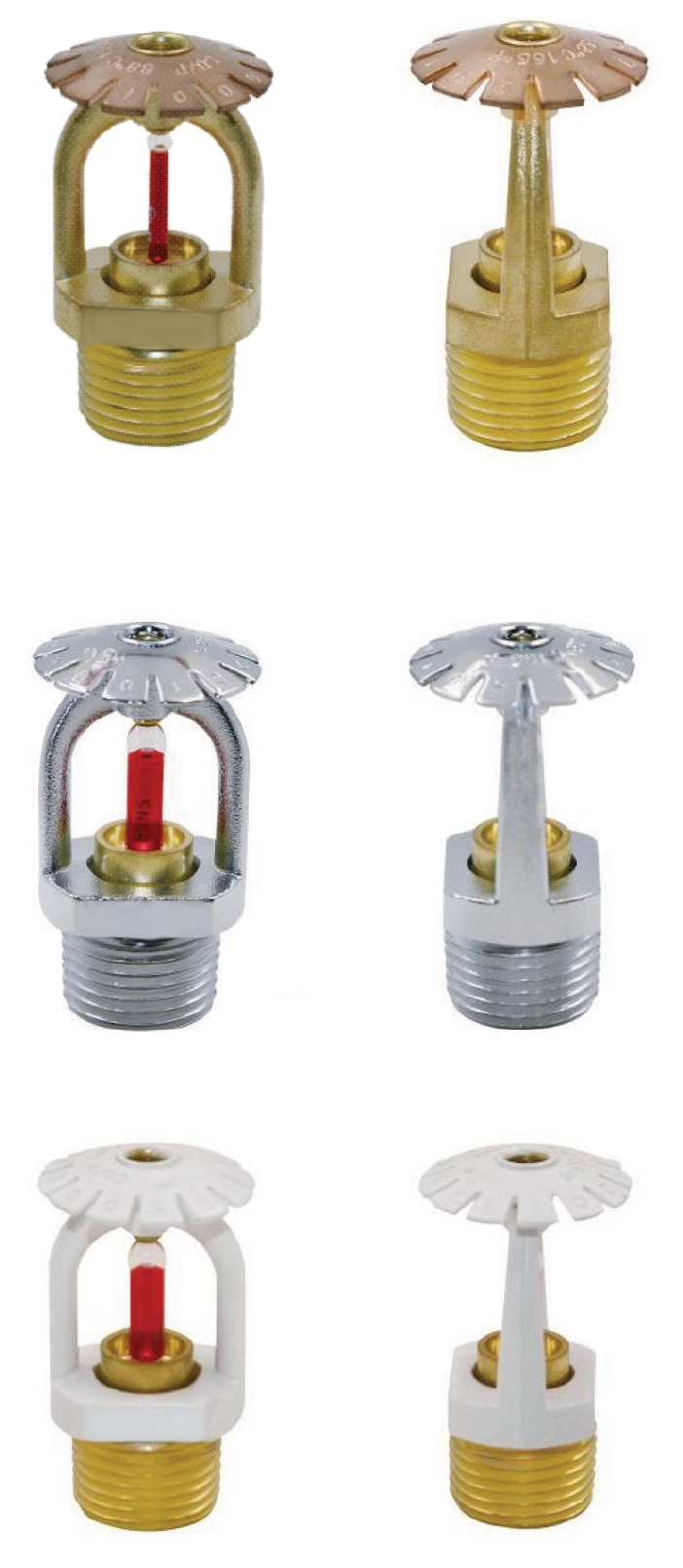

Conventional Sprinkler, Quick Response (3mm Glass Bulb)

Conventional Sprinkler, Quick Response (3mm Glass Bulb)

Response: Quick Response; Thermosensitive element: 3mm glass bulb; Approvals: UL; Temperature: 57C orange, 68C red (ordinary); 79C yellow, 93C green (intermediate); 141C blue (high); Finishes: brass, white coating, chrome; K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Thread: 1/2" NPT / 1/2" BSPT; Max working: 175 PSI (12 bar); Test: 500 PSI (35 bar); Min operating: 7 PSI (0.5 bar); Standard coverage; Torque 7-14 ft-lb; Materials (per diagram): Frame: DZR; Bulb: glass; Deflector: bronze; Screw: brass. Intended for upright or pendent installation (about 50% discharge up, 50% down).

View Details
Sprinklers
Conventional Sprinkler, Standard Response (5mm Glass Bulb)

Conventional Sprinkler, Standard Response (5mm Glass Bulb)

Response: Standard Response; Thermosensitive element: 5mm glass bulb; Approvals: UL; Temperature: 57C orange, 68C red (ordinary); 79C yellow, 93C green (intermediate); 141C blue (high); Finishes: brass, white coating, chrome; K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Thread: 1/2" NPT / 1/2" BSPT; Max working: 175 PSI (12 bar); Test: 500 PSI (35 bar); Min operating: 7 PSI (0.5 bar); Standard coverage; Torque 7-14 ft-lb; Materials (per diagram): Frame: DZR; Bulb: glass; Deflector: bronze; Screw: brass. Intended for upright or pendent installation (about 50% discharge up, 50% down).

View Details
Sprinklers

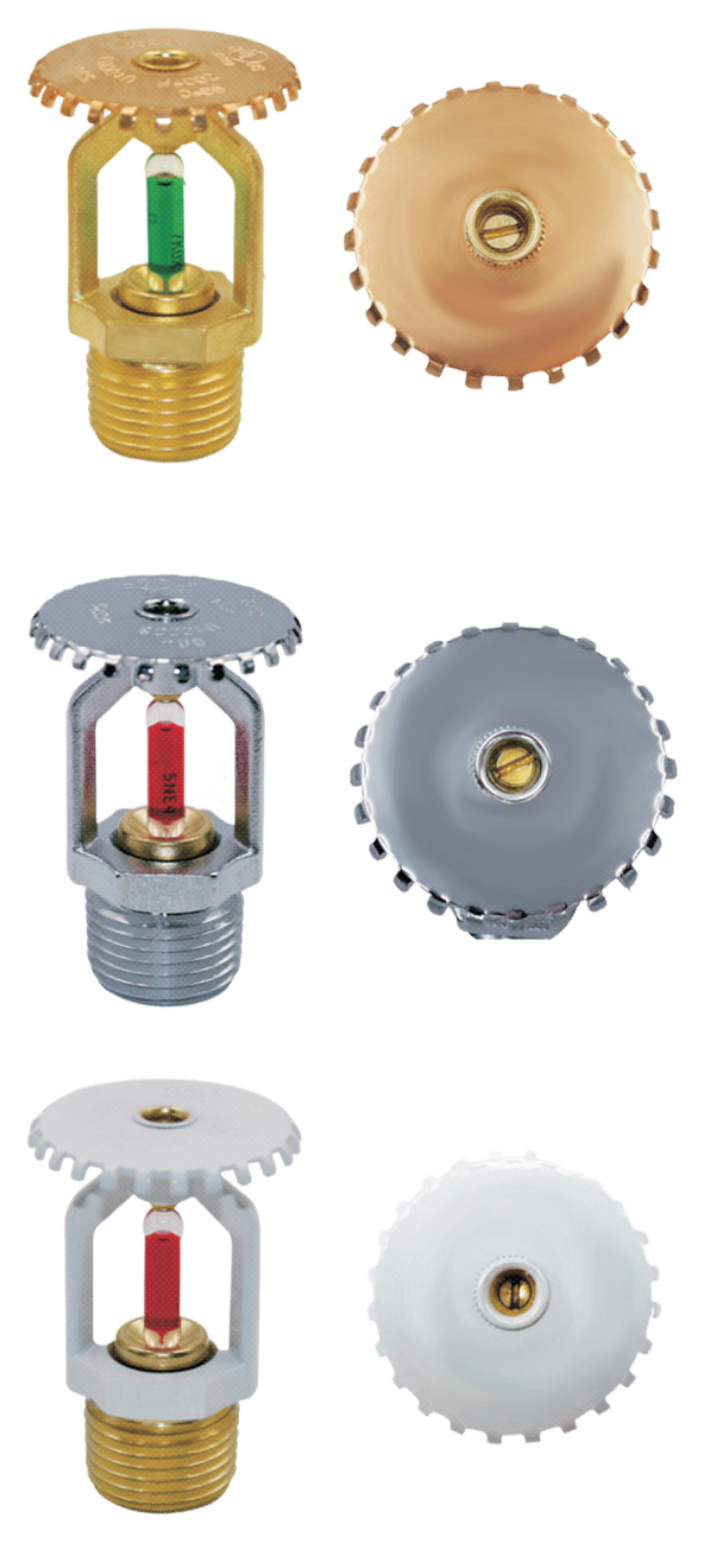

Upright Sprinkler, Quick Response (3mm Glass Bulb)

Upright Sprinkler, Quick Response (3mm Glass Bulb)

Response: Quick Response; Thermosensitive element: 3mm glass bulb; Approvals: FM and UL; Temperature: 57C orange, 68C red (ordinary); 79C yellow, 93C green (intermediate); 141C blue (high); Finishes: brass, white coating, chrome; K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Thread: 1/2" NPT / 1/2" BSPT; Max working: 175 PSI (12 bar); Test: 500 PSI (35 bar); Min operating: 7 PSI (0.5 bar); Standard coverage; Torque 7-14 ft-lb; Materials (per diagram): Frame: DZR; Bulb: glass; Pip cap: brass; Belleville spring seal: metal alloy coated with PTFE tape.

View Details
Sprinklers
Pendent Sprinkler, Quick Response (3mm Glass Bulb)

Pendent Sprinkler, Quick Response (3mm Glass Bulb)

Response: Quick Response; Thermosensitive element: 3mm glass bulb; Approvals: FM and UL; Temperature: 57C orange, 68C red (ordinary); 79C yellow, 93C green (intermediate); 141C blue (high); Finishes: brass, white coating, chrome; K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Thread: 1/2" NPT / 1/2" BSPT; Max working: 175 PSI (12 bar); Test: 500 PSI (35 bar); Min operating: 7 PSI (0.5 bar); Standard coverage; Torque 7-14 ft-lb; Materials (per diagram): Frame: DZR; Bulb: glass; Deflector: bronze; Screw: brass; Belleville spring seal: metal alloy coated with PTFE tape.

View Details
Sprinklers

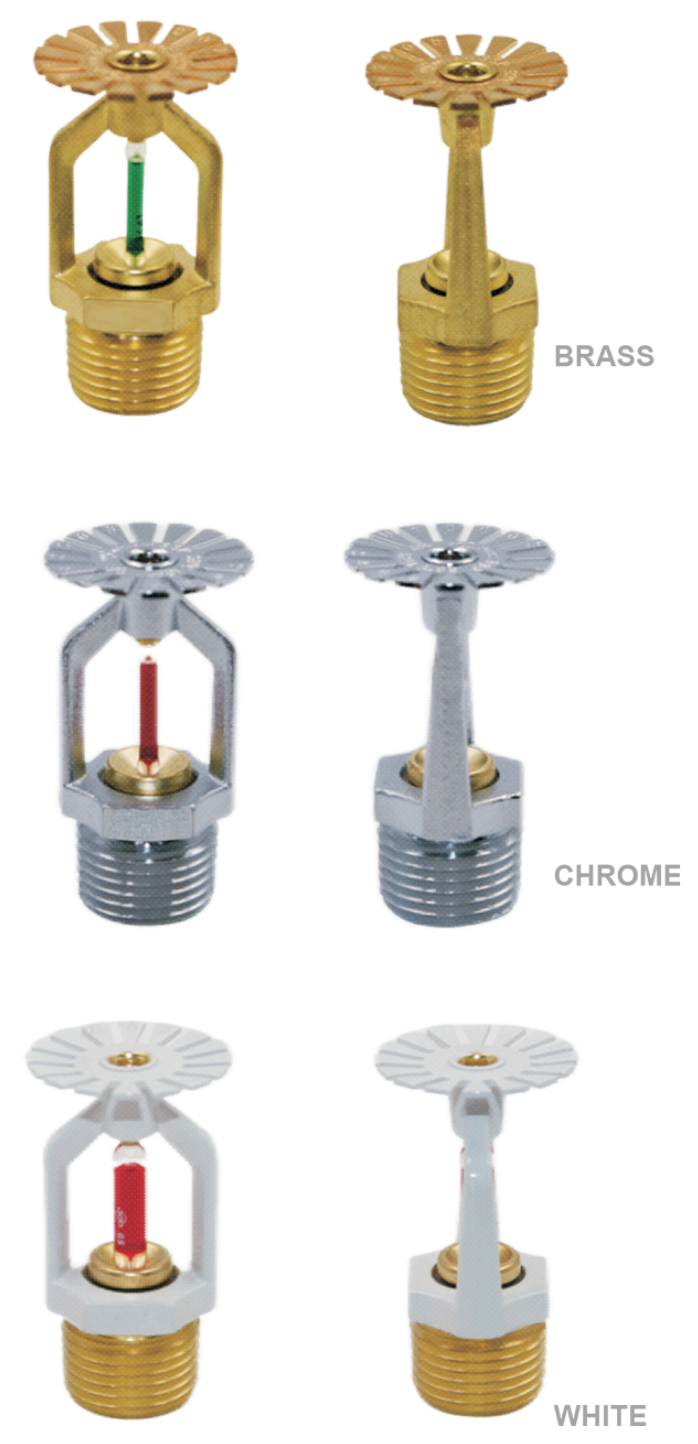

Pendent Sprinkler, Standard Response (5mm Glass Bulb)

Pendent Sprinkler, Standard Response (5mm Glass Bulb)

Response: Standard Response; Thermosensitive element: 5mm glass bulb; Approvals: FM and UL; Temperature: 57C orange, 68C red (ordinary); 79C yellow, 93C green (intermediate); 141C blue (high); Finishes: brass, white coating, chrome; K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Thread: 1/2" NPT / 1/2" BSPT; Max working: 175 PSI (12 bar); Test: 500 PSI (35 bar); Min operating: 7 PSI (0.5 bar); Standard coverage; Torque 7-14 ft-lb; Materials (per diagram): Frame: DZR; Bulb: glass; Deflector: bronze; Screw: brass; Belleville spring seal: metal alloy coated with PTFE tape.

View Details
Sprinklers
Upright Sprinkler, Standard Response (5mm Glass Bulb)

Upright Sprinkler, Standard Response (5mm Glass Bulb)

Response: Standard Response; Thermosensitive element: 5mm glass bulb; Approvals: FM and UL; Temperature: 57C orange, 68C red (ordinary); 79C yellow, 93C green (intermediate); 141C blue (high); Finishes: brass, white coating, chrome; K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Thread: 1/2" NPT / 1/2" BSPT; Max working: 175 PSI (12 bar); Test: 500 PSI (35 bar); Min operating: 7 PSI (0.5 bar); Standard coverage; Torque 7-14 ft-lb; Materials (per diagram): Frame: DZR; Bulb: glass; Pip cap: brass; Belleville spring seal: metal alloy coated with PTFE tape.

View Details
Sprinklers
Horizontal Sidewall Sprinkler, Quick Response (3mm Glass Bulb)

Horizontal Sidewall Sprinkler, Quick Response (3mm Glass Bulb)

Response: Quick Response; Thermosensitive element: 3mm glass bulb; Approvals: FM and UL; Temperature: 57C orange, 68C red (ordinary); 79C yellow, 93C green (intermediate); 141C blue (high); Finishes: brass, white coating, chrome; K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Thread: 1/2" NPT / 1/2" BSPT; Max working: 175 PSI (12 bar); Test: 500 PSI (35 bar); Min operating: 7 PSI (0.5 bar); Standard coverage; Torque 7-14 ft-lb; Materials (per diagram): Frame: DZR; Bulb: glass; Deflector: bronze; Screw: brass; Pip cap: brass; Belleville spring seal: metal alloy coated with PTFE tape.

View Details
Sprinklers

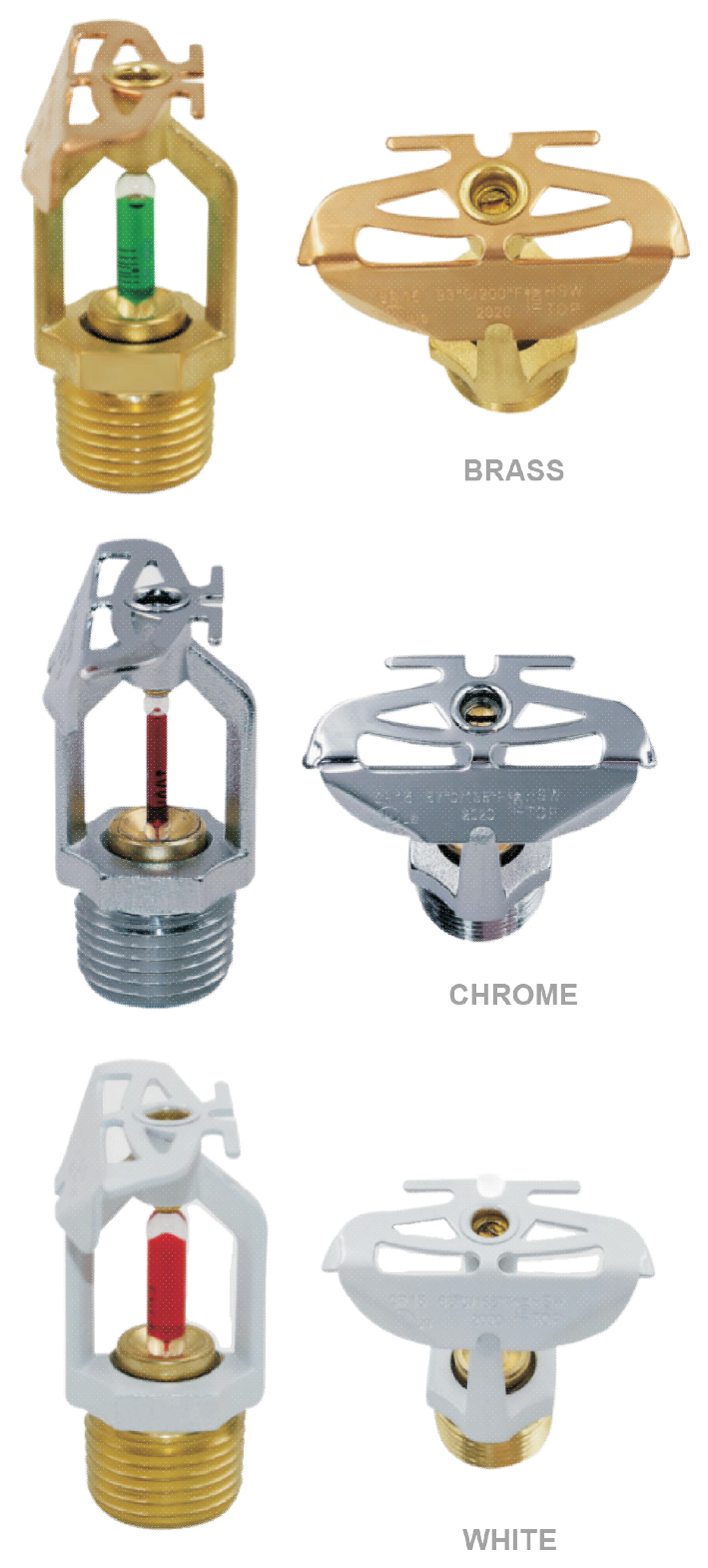

Horizontal Sidewall Sprinkler, Standard Response (5mm Glass Bulb)

Horizontal Sidewall Sprinkler, Standard Response (5mm Glass Bulb)

Response: Standard Response; Thermosensitive element: 5mm glass bulb; Approvals: FM and UL; Temperature: 57C orange, 68C red (ordinary); 79C yellow, 93C green (intermediate); 141C blue (high); Finishes: brass, white coating, chrome; K-factor: 5.6 gpm/psi^0.5 (80 L/min/bar^0.5); Thread: 1/2" NPT / 1/2" BSPT; Max working: 175 PSI (12 bar); Test: 500 PSI (35 bar); Min operating: 7 PSI (0.5 bar); Standard coverage; Torque 7-14 ft-lb; Materials (per diagram): Frame: DZR; Bulb: glass; Deflector: bronze; Screw: brass; Pip cap: brass; Belleville spring seal: metal alloy coated with PTFE tape.

View Details
