Pressure Reducing Valve 1"

Overview

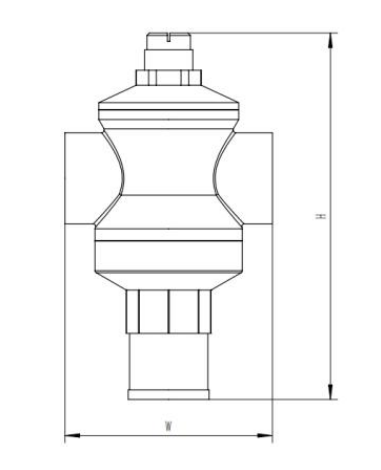

Female/female thread; Body: nickel-plated brass; Working Temperature: 0-80C; Factory preadjustment: 3-4 bar; Pressure gauge connection thread: G1/4"; Size: 1" (25mm); W: 86mm; H: 152mm; Inlet: BSP1"; Outlet: BSP1"; Max Inlet Pressure: 20Bar (290PSI); Outlet Pressure: 1-4Bar (14.5-58PSI)
