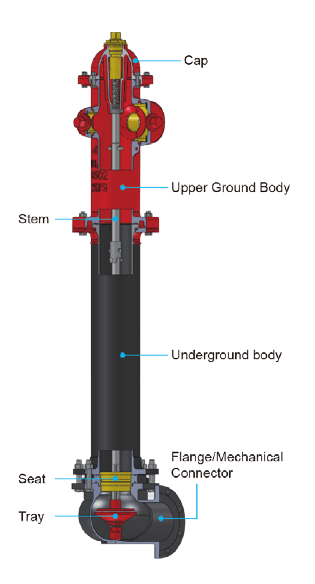

Dry Barrel Fire Hydrant, Flange Connector

Overview

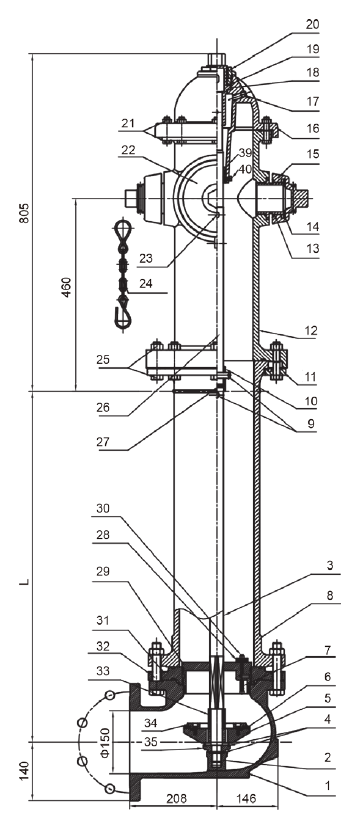

Nominal pressure: 250 PSI; Design standard: AWWA C502; Approvals: UL 246 listed, FM 1510 approved; Inlet flange: 6" (DN150); Main valve size: 133.4 mm (5-1/4"); Outlets: one pumper nozzle 4.5-4NH thread, two hose nozzles 2.5-7.5NH thread (other threads available); Body/connector/cover: ductile iron; Connecting rod/screw stem: steel 1045; Seals: EPDM; Seat/nozzle connectors: C95400; Finish: red polyurethane paint & black bitumen (or on request); Hydrant wrench supplied; Buried depth L (ft/mm): 3'6"/1063, 4'/1215, 4'6"/1368, 5'/1520, 5'6"/1673, 6'/1825, 6'6"/1978, 7'/2130; Connection: flange ASME B16.5 Class 150 / DIN 2501 PN16
