Breeching Inlet DN100 2-way Bronze Coupling

Overview

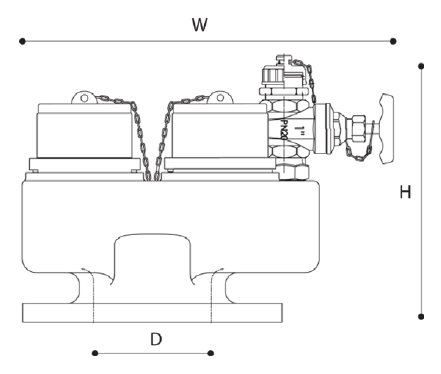

Standard: BS 5041-3; Outlet flange: BS 4504-2 16/21; Flange to blank cap: <=260 mm; DN25 drain valve to BS 5154; Plastic blank cap with chain; Vertical or horizontal mounting; Non-return valves test: 1.7 bar; Working pressure: 10 bar; Test pressure: 20 bar; Brass and bronze couplings on request; Size: DN100; H=225 mm; W=300 mm; D=100 mm; Connections: 2 x BS336; Coupling: Bronze
