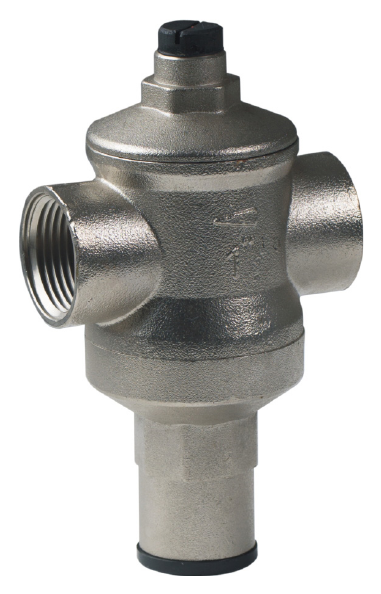

Female/female thread; Body: nickel-plated brass; Working Temperature: 0-80C; Factory preadjustment: 3-4 bar; Pressure gauge connection thread: G1/4"; Size: 1" (25mm); W: 86mm; H: 152mm; Inlet: BSP1"; Outlet: BSP1"; Max Inlet Pressure: 20Bar (290PSI); Outlet Pressure: 1-4Bar (14.5-58PSI)
Inlet Size: 1" (1-11 1/2 NPT or Rc 1); Outlet: 1/2-14 NPT or Rc 1/2; Design/Test Standard: UL 2573 / FM1344; Working Temperature: 0-100C / 32-212F; Working Pressure: 175PSI; Test Pressure: leakage 7PSI/263PSI, strength 350PSI; Application: wet pipe sprinkler systems or horizontal split case pumps; Materials: body, bonnet, plug ductile iron; filter screen, yoke, seat, shaft, ball, lever SS316; poppet EPDM
Solid wedge, non-rising stem, screwed in bonnet; manufactured to BS 5154; Service Temperature: -10 to +66C; Pressure Rating: PN20; End Connection: BSPT threaded; Material: brass; Size: 1"; Description: copper alloy gate valve with handwheel

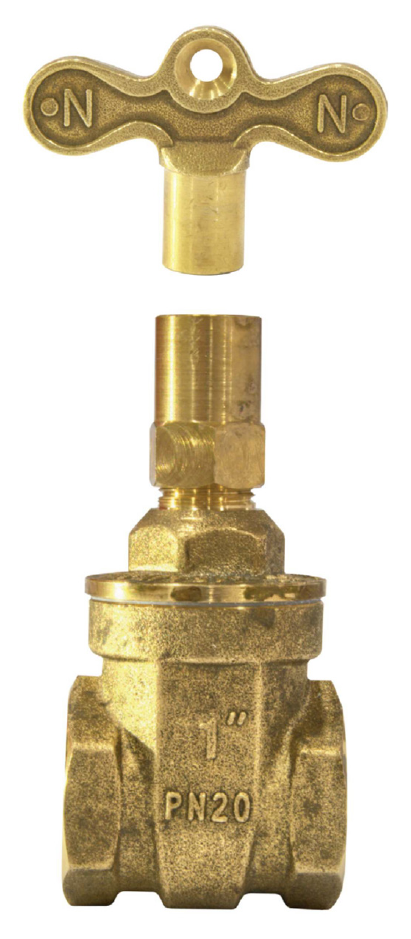

Solid wedge, non-rising stem, screwed in bonnet; manufactured to BS 5154; Service Temperature: -10 to +66C; Pressure Rating: PN20; End Connection: BSPT threaded; Material: brass; Size: 1"; Description: copper alloy gate valve with lockshield

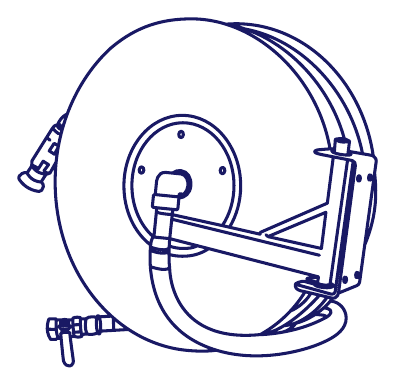

Automatic waterway fully opened by no more than 3 reel revolutions; Full brass waterway; powder coated anti-UV side discs; working pressure 30kg; fire hose anti-aging anti-UV, max WP 12Bar, average BP up to 45Bar; adjustable jet/spray nozzle; EN 671-1:2012 LPCB Ref. 1038BKa; Hose Specification: 19mm x 20m / 30m; Diameter: 555mm; Bracket Length: 280mm; Reel Width: 150mm; Pressure Gauge Optional
Automatic waterway fully opened by no more than 3 reel revolutions; Full brass waterway; powder coated anti-UV side discs; working pressure 30kg; fire hose anti-aging anti-UV, max WP 12Bar, average BP up to 45Bar; adjustable jet/spray nozzle; EN 671-1:2012 LPCB Ref. 1038BKa; Hose Specification: 25mm x 20m / 30m; Diameter: 600 / 555mm; Bracket Length: 300mm; Reel Width: 150 / 180mm; Pressure Gauge Optional

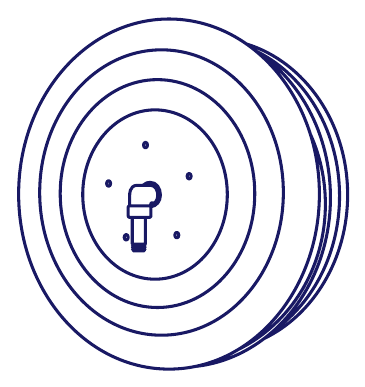

Manual waterway; Full brass waterway; powder coated anti-UV side discs; working pressure 30kg; fire hose anti-aging anti-UV, max WP 12Bar, average BP up to 45Bar; adjustable jet/spray nozzle; EN 671-1:2012 LPCB Ref. 1038BKa; Hose Specification: 19mm x 25m / 30m; Diameter: 555mm; Bracket Length: 300mm; Reel Width: 150mm; Catalogue heading prints model as FIS-08-A (19mm)
Manual waterway; Full brass waterway; powder coated anti-UV side discs; working pressure 30kg; fire hose anti-aging anti-UV, max WP 12Bar, average BP up to 45Bar; adjustable jet/spray nozzle; EN 671-1:2012 LPCB Ref. 1038BKa; Hose Specification: 25mm x 25m / 30m; Diameter: 600 / 555mm; Bracket Length: 320mm; Reel Width: 150 / 180mm; Catalogue heading prints model as FIS-07-B (25mm)
