Overview

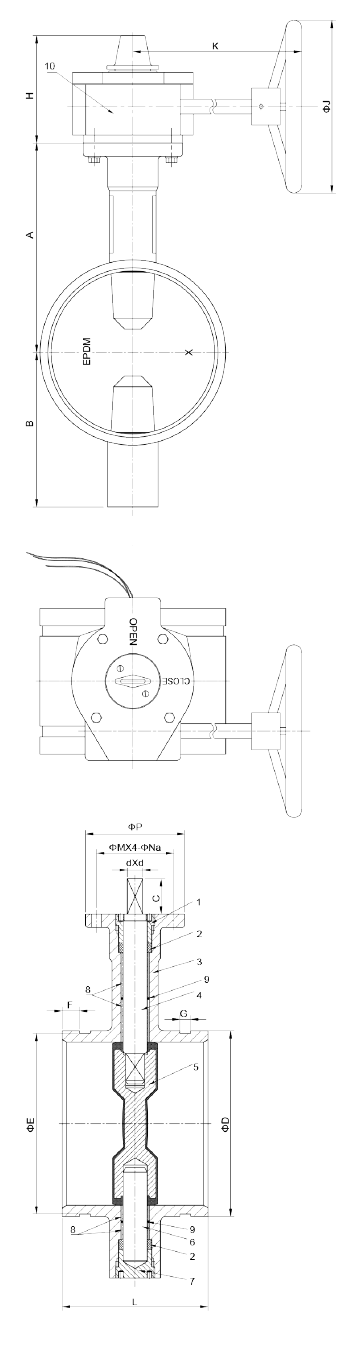

Connection: Grooved End; Conforms to ANSI/AWWA C606 or Metric Standard; UL & FM; Max WP 300PSI (test 600PSI) per UL1091 & FM 1112; Max Temp 80C/176F; indoor/outdoor fire protection use; epoxy coated or coating upon request; Disc: ductile iron EPDM encapsulated; Top Flange: ISO 5211; Body ductile iron; Shafts 416 SS; Size (varies): 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"; A (varies): 110, 125, 140, 160, 170, 190, 230, 260, 300; B (varies): 85, 95, 100, 125, 140, 175, 200, 240; C (varies): 32, 45; D (varies): 60.3, 73 / 76.1, 88.9, 114.3, 139.7 / 141.3, 165.1 / 168.3, 219.1 / 216.3, 267.4 / 273, 318.5 / 323.8; E (varies): 57.15, 69.1 / 72.3, 84.9, 110.1, 135.5 / 137, 160.9 / 164, 214.4 / 211.6, 262.6 / 268.3, 312.9 / 318.3; F (varies): 15.9, 19; G (varies): 7.9, 9.5, 11.1, 12.7; H (varies): 111, 126, 161; K (varies): 153 / 218, 210 / 232, 249; J (varies): 152, 200, 300, 350; P (varies): 90, 125, 150; M (varies): 70, 102, 125; N (varies): 9, 12, 14; d (varies): 10, 11, 14, 16, 19, 24, 26; L (varies): 81 / 88 (all mm), 96.4 (all mm), 97 (all mm), 115.1 (all mm), 132.4 / 148 (all mm), 133 / 147.4 (all mm), 159 (all mm), 165 (all mm); Part numbers: 9 (see Part Numbers sheet)
