Pressure Switch

Overview

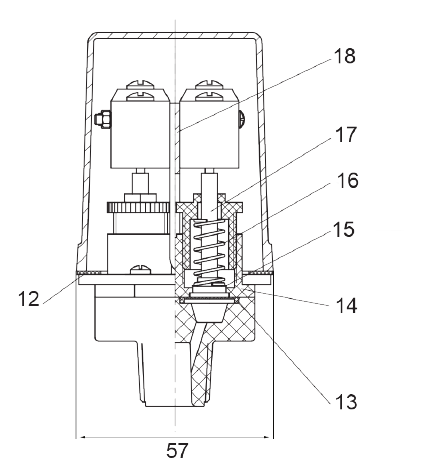

Dimension: 121mm (4 3/4") x 57mm (2 1/4") x 111mm (4 3/8"); Wiring Inlet Size: 1/2" NPT; Differential Pressure Setting: 1 PSI (not adjustable after consignment); Max Working Pressure: 300PSI; Switch Contact: double SPDT; Contact Capacity: 15A at 125/250VAC, 2.5A at 30VDC; Ingress protection: IP66; Working Temperature: -40 to 60C / -40 to 140F; Tamper proof fasteners on outer cover; Outer cover YZAISi11Cu3
