Test and Drain Valve

Overview

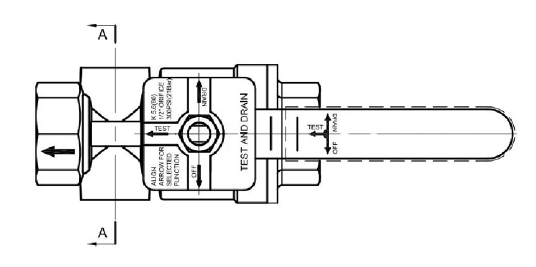

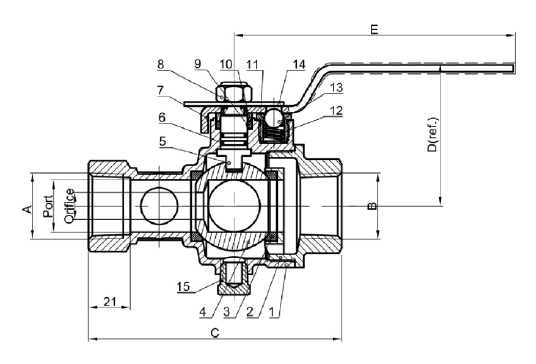

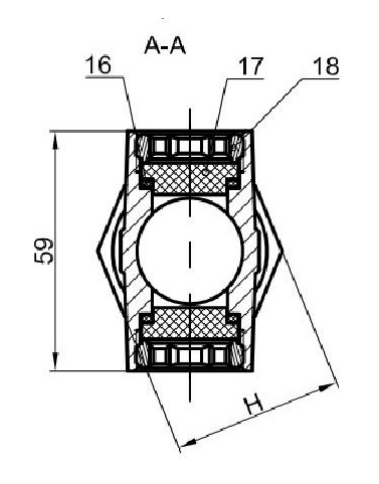

Working Pressure: 300PSI; K-Factor: 5.6; Positive handle positioning for OFF, TEST or DRAIN; large integral sight glass on both sides; Body, cap, ball, stem C35330/C87800; PTFE seals; O-rings NBR; sight glass LEXAN; Connection A/B (varies): NPT 1", NPT 1-1/4", NPT 1-1/2", NPT 2"; Orifice (varies): 1/2 (0.512), 1/2 (0.528), 1/2 (0.524); Port (varies): 1.024, 1.575; C (varies): 5, 6.57; D (ref.) (varies): 2.76, 3.5; E (varies): 5.16, 6.34; H (varies): 1.65, 2.28; Part numbers: 4 (see Part Numbers sheet)
