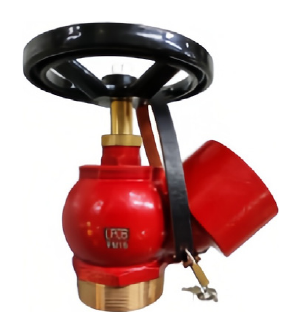

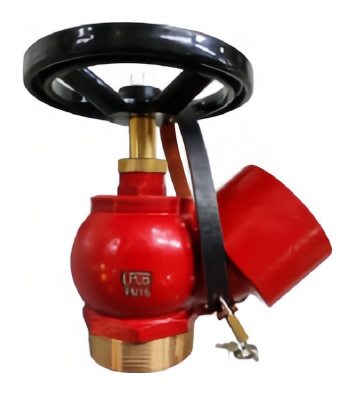

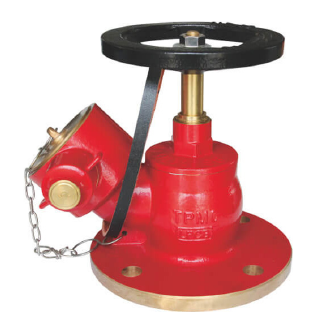

Oblique Landing Valve, Flanged Inlet (Low Pressure)

Overview

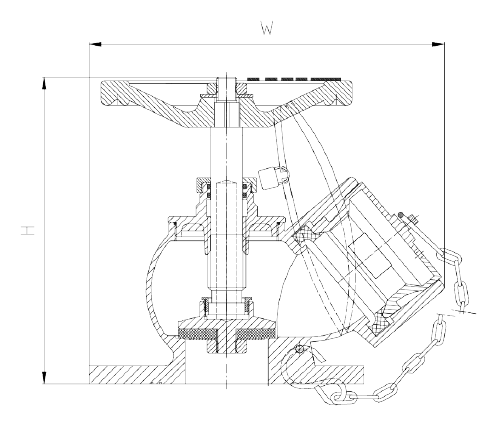

Standard: BS 5041-1; LPCB certified; Outlet: 2.5" BS 336 female with blank cap; Body: copper alloy EN 1982; Hand wheel: grey cast iron BS EN 1561 (black); Blank cap: aluminium alloy EN 573-3; Valve seat & stem: copper alloy EN 12164; Washer: rubber BS 1154; Finish: red powder coating; strap and padlock supplied; Inlet: DN65 flanged (BS 4504 Part 2:1974); Size: DN65; H=182 mm, W=223 mm (p35; p36 datasheet lists H=185, W=225); Working pressure: 15 bar; Test pressure: 22.5 bar (valve seat test 16.5 bar, body test 22.5 bar); Flow rate: 8.5 L/s at 4 bar outlet pressure
