Overview

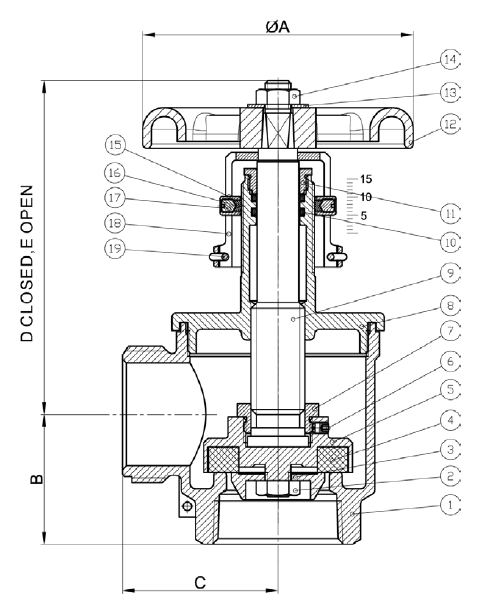

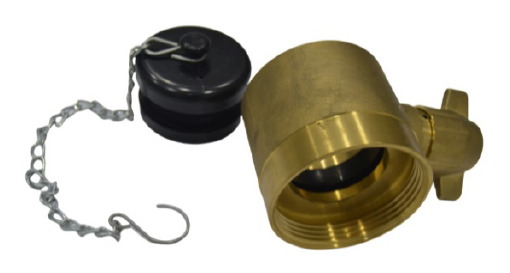

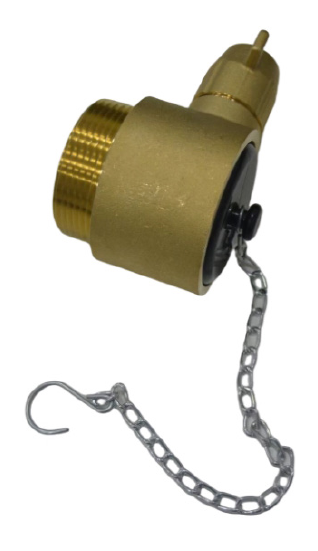

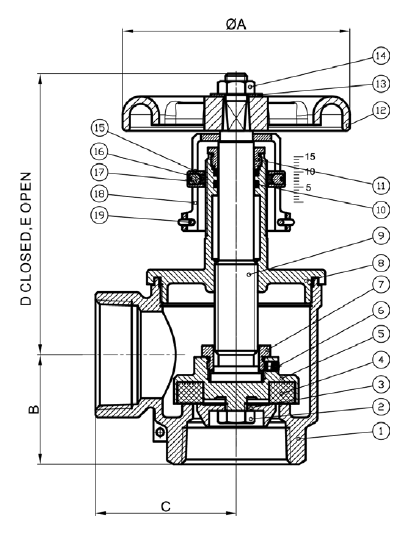

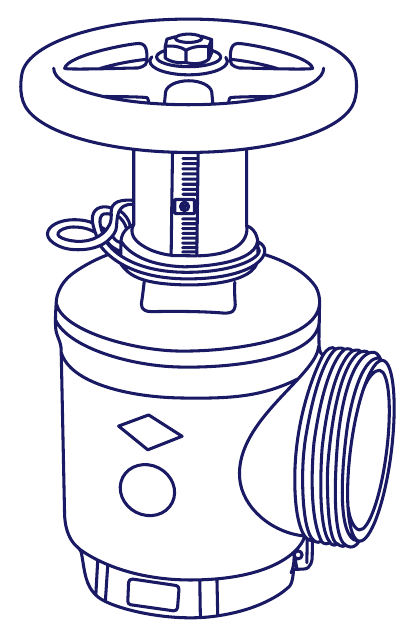

Pressure reducing and restricting angle valve, 175 lb rated; adjustable restriction of residual pressure up to 175 lb; locking pin restricts full opening (removable by firefighters); Forged brass valve; Body/bonnet/stem/nut/collar: ASTM B283 C37700; Seat seal and O-ring: EPDM (A70); Handle wheel: ZL 102 (red); Max working pressure: UL 175 PSI, FM 175 PSI / 300 PSI; Optional finishes: PB, RC, PC; Connection (varies): female NPT inlet and outlet, female NPT inlet x male hose thread outlet; Option (varies): male adaptor available, female adaptor available; Size (varies): 1 1/2" x 1 1/2", 2 1/2" x 2 1/2"; Dimensions (mm) (varies): A=100, A=127; Other (varies): B=48, C=62, D=123, E=145, B=67, C=83, D=165, E=206, C=58; Part numbers: 3 (see Part Numbers sheet)
