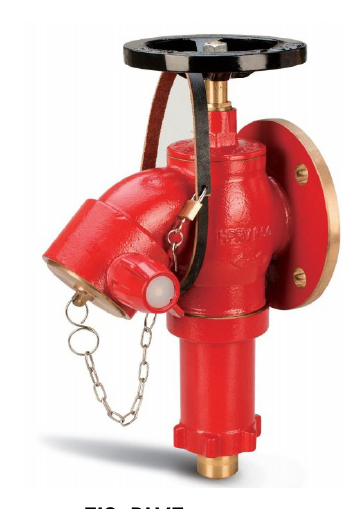

Bib-nosed Pressure Reducing Landing Valve, Flanged Inlet (High Pressure)

Overview

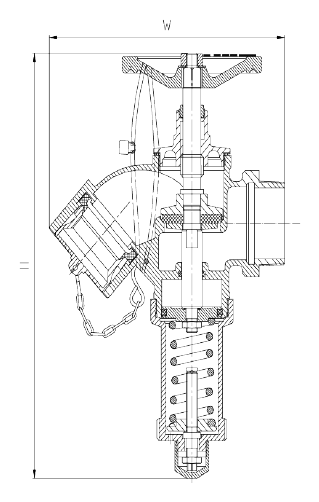

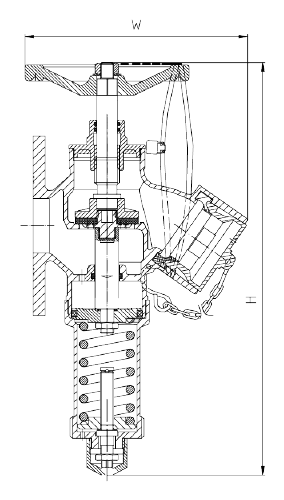

Standard: BS 5041-1; LPCB certified; Pressure reducing type, outlet pressure range 4-7 bar; Outlet: 2.5" BS 336 female with blank cap; Body: copper alloy EN 1982; Bonnet and valve seat & stem: copper alloy EN 12164; Hand wheel: grey cast iron BS EN 1561 (black); Blank cap: aluminium alloy EN 573-3; Washer: rubber BS 1154; Finish: red powder coating; strap and padlock supplied; Inlet: DN65 flanged (BS 4504 Part 2:1974); Size: DN65; H=380 mm, W=205 mm (p35; p37 datasheet lists W=210); Working pressure: 20 bar; Test pressure: 30 bar (valve seat test 22 bar, body test 30 bar); Flow rate: 8.5 L/s at 4.5 bar outlet pressure
