Overview

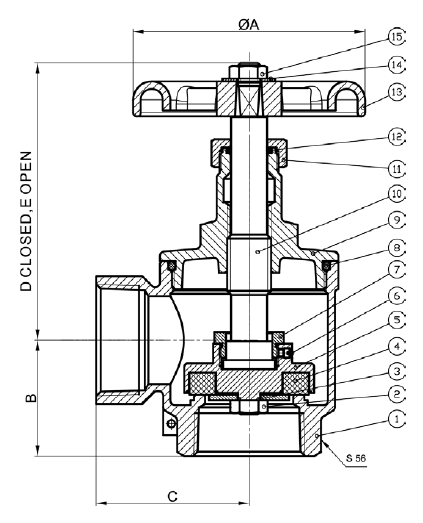

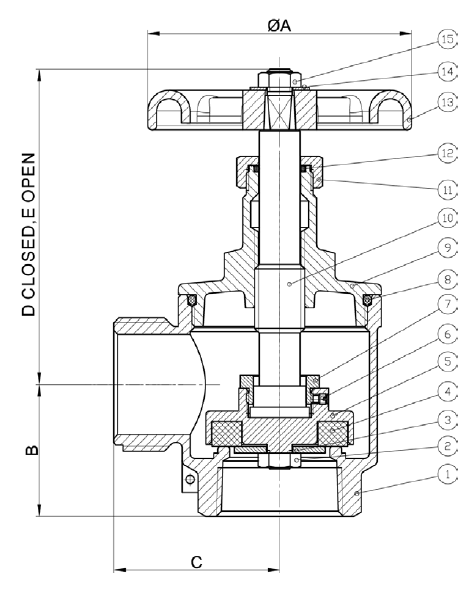

Forged brass valve; Body/bonnet/stem/nut: ASTM B283 C37700; Seat seal and O-rings: EPDM (A70); Handle wheel: ZL 102 (red); Washers/set screw: 304 SS; Max working pressure: 300 PSI; Optional finishes: PB polished brass, RC rough chrome plated, PC polished chrome plated; Connection (varies): female NPT inlet and outlet, 1 1/2" FNPT x FNPT, female NPT inlet and outlet, 2 1/2" FNPT x FNPT, female NPT inlet x male hose thread outlet, 1 1/2" FNPT x MNST, female NPT inlet x male hose thread outlet, 2 1/2" FNPT x MNST; Option (varies): male adaptor available, female adaptor available; Size (varies): 1 1/2" x 1 1/2", 2 1/2" x 2 1/2"; Dimensions (mm) (varies): A=100, A=127; Other (varies): B=50, C=66, D=119, E=145, B=68, C=84, D=157, E=200, C=63, C=79; Outlet thread options (varies): MBCT, MONT, MPHX, MQST, MCLV, MTEM, MNPSH; Part numbers: 4 (see Part Numbers sheet)
