Overview

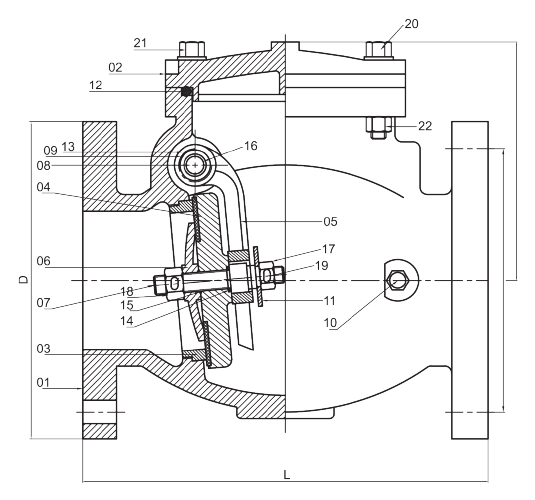

Design Standard: AWWA C508; Flange Standard: ASME/ANSI B16.1 Class 125, ASME/ANSI B16.42 Class 150, BS EN 1092-2 PN16, GB/T9113.1; Face to Face Standard: ASME B16.10; Approvals: UL, FM; Max Working Pressure: 300PSI; Max Testing Pressure: 600PSI; conforms to UL 312 / FM class 1210; Working Temperature: 0-80C / 32-176F; Coating: epoxy coated or coating upon request; Installation: vertical or horizontal, one-way flow; Materials: body, bonnet, disc, rocker arm ductile iron (disc + EPDM); seat ring C95400; stems stainless steel 304; Size (varies): 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"; Other (varies): DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300; L (varies): 203mm, 216mm, 241mm, 292mm, 330mm, 356mm, 495mm, 622mm, 698mm; D (varies): 152mm, 178mm, 191mm, 229mm, 254mm, 279mm, 343mm, 406mm, 483mm; H (varies): 142mm, 148mm, 163.5mm, 172mm, 237mm, 233mm, 301mm, 348mm, 419mm; Part numbers: 9 (see Part Numbers sheet)
