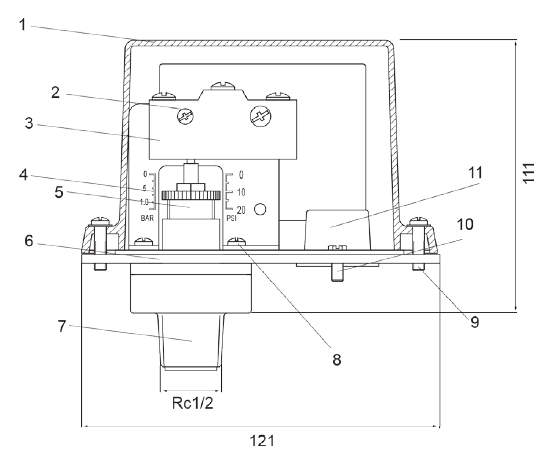

Dimension: 121mm (4 3/4") x 57mm (2 1/4") x 111mm (4 3/8"); Wiring Inlet Size: 1/2" NPT; Differential Pressure Setting: 1 PSI (not adjustable after consignment); Max Working Pressure: 300PSI; Switch Contact: double SPDT; Contact Capacity: 15A at 125/250VAC, 2.5A at 30VDC; Ingress protection: IP66; Working Temperature: -40 to 60C / -40 to 140F; Tamper proof fasteners on outer cover; Outer cover YZAISi11Cu3

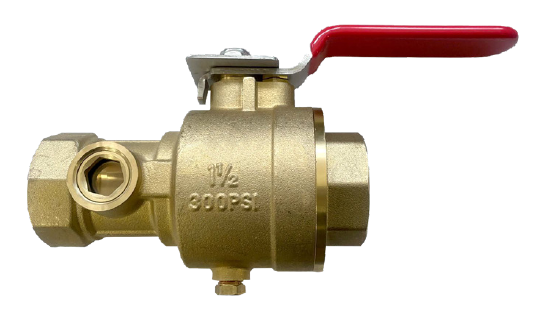

Working Pressure: 300PSI; K-Factor: 5.6; Positive handle positioning for OFF, TEST or DRAIN; large integral sight glass on both sides; Body, cap, ball, stem C35330/C87800; PTFE seals; O-rings NBR; sight glass LEXAN; Connection A/B (varies): NPT 1", NPT 1-1/4", NPT 1-1/2", NPT 2"; Orifice (varies): 1/2 (0.512), 1/2 (0.528), 1/2 (0.524); Port (varies): 1.024, 1.575; C (varies): 5, 6.57; D (ref.) (varies): 2.76, 3.5; E (varies): 5.16, 6.34; H (varies): 1.65, 2.28; Part numbers: 4 (see Part Numbers sheet)

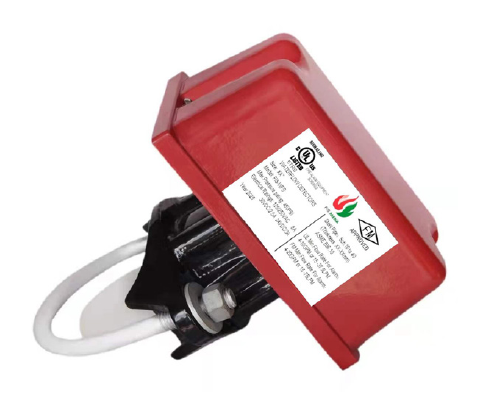

Wet pipe systems only; Size range: DN50-DN250 / 2"-10"; Working Pressure: 450PSI & 300PSI; Sensitivity FM: no-alarm flow <=15L/min, alarm flow >15L/min and <=75L/min; UL: no-alarm flow <=15L/min, alarm flow >15L/min and <=37.5L/min; Switch Contacts: AC 125/250V 8A, DC 24V 3A, DC 30V 2.5A; Working Temperature: 0-49C / 32-120.2F; Steel Pipe: SCH10-40; 0-90 second field replaceable retard; Materials: framework ASTM A536 65-45-12, vane LLDPE, U-bolt ASTM A36, base plate and shaft S.S. 304, seal EPDM; Size (varies): 2", 2.5", 3", 4", 5", 6", 8", 10"; Nominal Pipe OD (varies): 60.3mm, 73 / 76.1mm, 88.9mm, 114.3mm, 141.3 / 139.7mm, 168.3 / 165.1mm, 219.1 / 216.3mm, 273mm; L (varies): 85mm, 92mm, 106mm, 134mm, 162mm, 189.5mm, 240mm, 293mm; H (varies): 188mm, 200mm, 220mm, 245mm, 272mm, 298mm, 350mm, 405mm; Part numbers: 8 (see Part Numbers sheet)

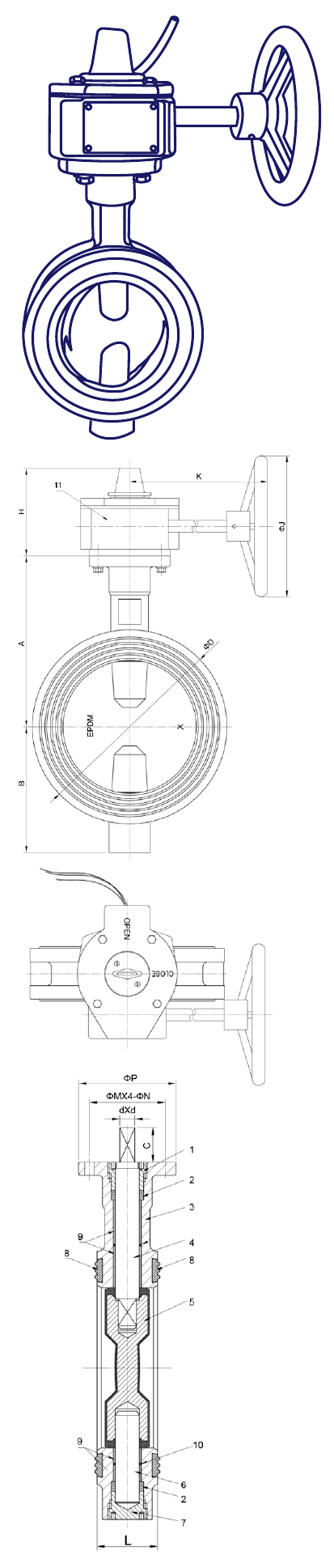

Connection: Wafer End; Flange Standard: ANSI 125/150, DIN2501 PN10/16; UL & FM; Max WP 300PSI (test 600PSI) per UL1091 & FM 1112; Max Temp 80C/176F; indoor/outdoor fire protection use; epoxy coated or coating upon request; Disc: ductile iron EPDM encapsulated; Top Flange: ISO 5211; Body ductile iron; Shafts 416 SS; Size (varies): 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"; A (varies): 110, 125, 140, 160, 170, 190, 230, 260, 300; B (varies): 85, 95, 100, 125, 140, 175, 200, 240; C (varies): 32, 45; D (varies): 100, 112, 120, 161, 182, 216, 260, 320, 375; H (varies): 111, 126, 161; K (varies): 153 / 218, 210 / 232, 249; J (varies): 152, 200, 300, 350; P (varies): 90, 125, 150; M (varies): 70, 102, 125; N (varies): 9, 12, 14; d (varies): 10, 11, 14, 16, 19, 24, 26; L (varies): 42 (all mm), 44.2 (all mm), 45.3 (all mm), 52 (all mm), 54.4 (all mm), 55.8 (all mm), 60.5 (all mm), 66.5 (all mm), 76.9 (all mm); Part numbers: 9 (see Part Numbers sheet)

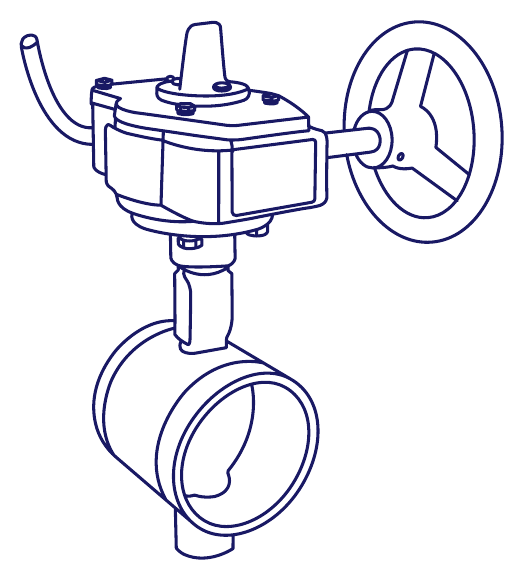

Connection: Grooved End; Conforms to ANSI/AWWA C606 or Metric Standard; UL & FM; Max WP 300PSI (test 600PSI) per UL1091 & FM 1112; Max Temp 80C/176F; indoor/outdoor fire protection use; epoxy coated or coating upon request; Disc: ductile iron EPDM encapsulated; Top Flange: ISO 5211; Body ductile iron; Shafts 416 SS; Size (varies): 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"; A (varies): 110, 125, 140, 160, 170, 190, 230, 260, 300; B (varies): 85, 95, 100, 125, 140, 175, 200, 240; C (varies): 32, 45; D (varies): 60.3, 73 / 76.1, 88.9, 114.3, 139.7 / 141.3, 165.1 / 168.3, 219.1 / 216.3, 267.4 / 273, 318.5 / 323.8; E (varies): 57.15, 69.1 / 72.3, 84.9, 110.1, 135.5 / 137, 160.9 / 164, 214.4 / 211.6, 262.6 / 268.3, 312.9 / 318.3; F (varies): 15.9, 19; G (varies): 7.9, 9.5, 11.1, 12.7; H (varies): 111, 126, 161; K (varies): 153 / 218, 210 / 232, 249; J (varies): 152, 200, 300, 350; P (varies): 90, 125, 150; M (varies): 70, 102, 125; N (varies): 9, 12, 14; d (varies): 10, 11, 14, 16, 19, 24, 26; L (varies): 81 / 88 (all mm), 96.4 (all mm), 97 (all mm), 115.1 (all mm), 132.4 / 148 (all mm), 133 / 147.4 (all mm), 159 (all mm), 165 (all mm); Part numbers: 9 (see Part Numbers sheet)

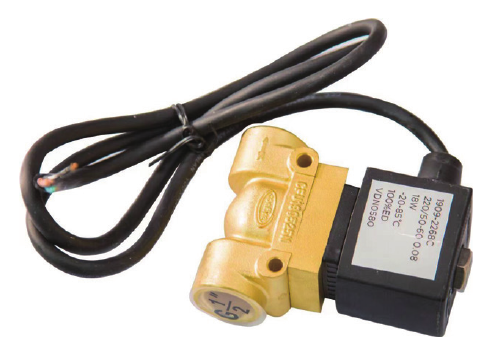

Working Temperature: 0-85C / 32-185F; Connection Size: 1/2" NPT; Max Working Pressure: 350PSI; Electrical Rating: DC24V, 16W, IP68; Medium: water and air; Materials: valve body, flange, piston ZCuAl8Mn13Fe3; seals EPDM; springs 304H; casing pipe S304
Type: GXG 300PSI; Design Standard: ASME B16.42-2016; Flange Standard: Class 150/300 or DIN2501 PN16/PN25; Groove Standard: AWWA C606 / ISO 6182; FM UL with 300PSI; Max Working Pressure: 250PSI or 300PSI; Max Testing Pressure: 500PSI/600PSI conforms to UL260, FM1011/1012/1013, FM1020; Working Temperature: 4-52C / 39.2-125.6F; Remote actuation: electric or pneumatic; Alarm interface: 3/4" NPT; Horizontal or vertical installation; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200); Part numbers: 6 (see Part Numbers sheet)
Type: GXG 250PSI; Design Standard: ASME B16.42-2016; Flange Standard: Class 150/300 or DIN2501 PN16/PN25; Groove Standard: AWWA C606 / ISO 6182; FM UL with 300PSI; Max Working Pressure: 250PSI or 300PSI; Max Testing Pressure: 500PSI/600PSI conforms to UL260, FM1011/1012/1013, FM1020; Working Temperature: 4-52C / 39.2-125.6F; Remote actuation: electric or pneumatic; Alarm interface: 3/4" NPT; Horizontal or vertical installation; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200); Part numbers: 6 (see Part Numbers sheet)
Type: FXG 300PSI; Design Standard: ASME B16.42-2016; Flange Standard: Class 150/300 or DIN2501 PN16/PN25; Groove Standard: AWWA C606 / ISO 6182; FM UL with 300PSI; Max Working Pressure: 250PSI or 300PSI; Max Testing Pressure: 500PSI/600PSI conforms to UL260, FM1011/1012/1013, FM1020; Working Temperature: 4-52C / 39.2-125.6F; Remote actuation: electric or pneumatic; Alarm interface: 3/4" NPT; Horizontal or vertical installation; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200); Part numbers: 6 (see Part Numbers sheet)
Type: FXG 250PSI; Design Standard: ASME B16.42-2016; Flange Standard: Class 150/300 or DIN2501 PN16/PN25; Groove Standard: AWWA C606 / ISO 6182; FM UL with 300PSI; Max Working Pressure: 250PSI or 300PSI; Max Testing Pressure: 500PSI/600PSI conforms to UL260, FM1011/1012/1013, FM1020; Working Temperature: 4-52C / 39.2-125.6F; Remote actuation: electric or pneumatic; Alarm interface: 3/4" NPT; Horizontal or vertical installation; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200); Part numbers: 6 (see Part Numbers sheet)

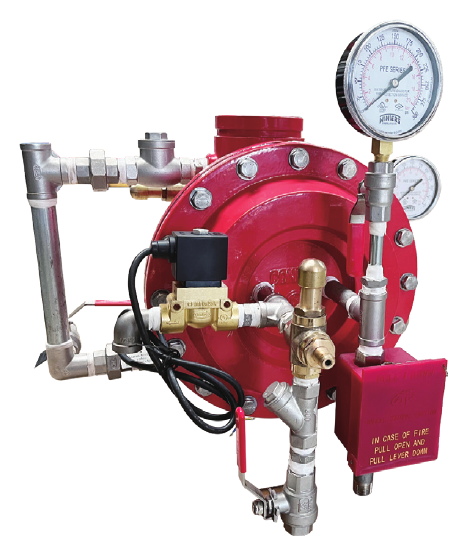

Type: FXF 300PSI; Design Standard: ASME B16.42-2016; Flange Standard: Class 150/300 or DIN2501 PN16/PN25; Groove Standard: AWWA C606 / ISO 6182; FM UL with 300PSI; Max Working Pressure: 250PSI or 300PSI; Max Testing Pressure: 500PSI/600PSI conforms to UL260, FM1011/1012/1013, FM1020; Working Temperature: 4-52C / 39.2-125.6F; Remote actuation: electric or pneumatic; Alarm interface: 3/4" NPT; Horizontal or vertical installation; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200); Dimensions A (varies): 287±2mm, 340(324)±2mm, 390(350)±2mm, 508(460)±2mm, 584(570)±2mm; B (varies): 440±10mm, 450±10mm, 520±10mm, 570±10mm, 900±10mm; C (varies): 460±10mm, 490±10mm, 570±10mm, 650±10mm; D (varies): 500±10mm, 540±10mm, 570±10mm, 680±10mm, 800±10mm, 900±10mm; Part numbers: 6 (see Part Numbers sheet)
Type: FXF 250PSI; Design Standard: ASME B16.42-2016; Flange Standard: Class 150/300 or DIN2501 PN16/PN25; Groove Standard: AWWA C606 / ISO 6182; FM UL with 300PSI; Max Working Pressure: 250PSI or 300PSI; Max Testing Pressure: 500PSI/600PSI conforms to UL260, FM1011/1012/1013, FM1020; Working Temperature: 4-52C / 39.2-125.6F; Remote actuation: electric or pneumatic; Alarm interface: 3/4" NPT; Horizontal or vertical installation; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200); Dimensions A (varies): 287±2mm, 340(324)±2mm, 390(350)±2mm, 508(460)±2mm, 584(570)±2mm; B (varies): 440±10mm, 450±10mm, 520±10mm, 570±10mm, 900±10mm; C (varies): 460±10mm, 490±10mm, 570±10mm, 650±10mm; D (varies): 500±10mm, 540±10mm, 570±10mm, 680±10mm, 800±10mm, 900±10mm; Part numbers: 6 (see Part Numbers sheet)

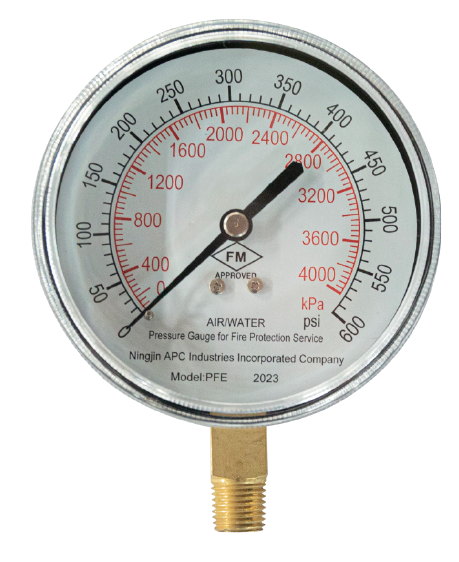

Pressure gauge for fire protection system; designed and manufactured to FM2311; FM approved; Working Temperature: 0-80C / 32-176F; Wiring Inlet Size: 1/4" NPT; Materials: base HPb59-1, watchcase 1008/PC, spring pipe Qsn0.8-2, pointer Al; Nominal Pressure (varies): 0-300PSI, 0-600PSI; Part numbers: 2 (see Part Numbers sheet)

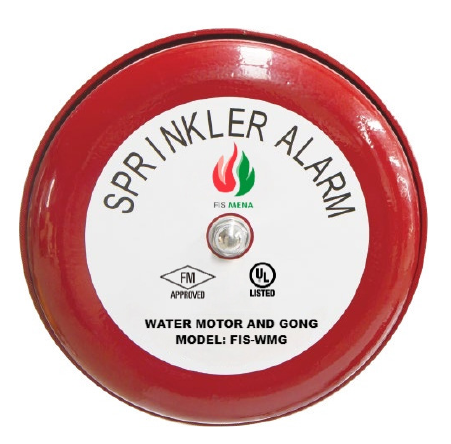

Designed and manufactured to UL 193 / FM 1055; Working Temperature: 0-100C / 32-212F; Max Working Pressure: 300PSI; Inlet Connection: 3/4" NPT; Outlet Connection: 1" NPT; Materials: driver shell, drive shaft, bell seat, gong aluminium alloy; impeller Delrin; nozzle C954; striker phenolic resin
Connection: Groove x Flange; Wet pipe sprinkler alarm valve with retard chamber, pressure gauges, water motor alarm, pressure switch, drain valve and filter; Working Pressure: 300PSI (20.7 bar); FM & UL approved; Flange Standard: ASME/ANSI B16.1 Class 125, ASME/ANSI B16.42 Class 150, BS EN 1092-2 PN16, GB/T9113.1; Groove Standard: AWWA C606, ISO6182-12; Working Temperature: 4-70C / 39.2-158F; Coating: epoxy coated or coating upon request; Body: ductile iron ASTM A-536 65-45-12; Trim: SS304; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300); Trim dimensions a (varies): 340mm, 342mm, 349mm, 415mm, 475mm, 495mm; b (varies): 205mm, 250mm, 274mm, 290mm, 340mm, 368mm; c (varies): 145mm, 160mm, 180mm, 205mm, 240mm, 270mm; d (varies): 110mm, 136mm, 162mm, 195mm, 235mm, 270mm; Face to face L (varies): 239mm, 240mm, 245mm, 316mm, 386mm, 390mm, 438mm, 535mm, 622mm; Part numbers: 9 (see Part Numbers sheet)

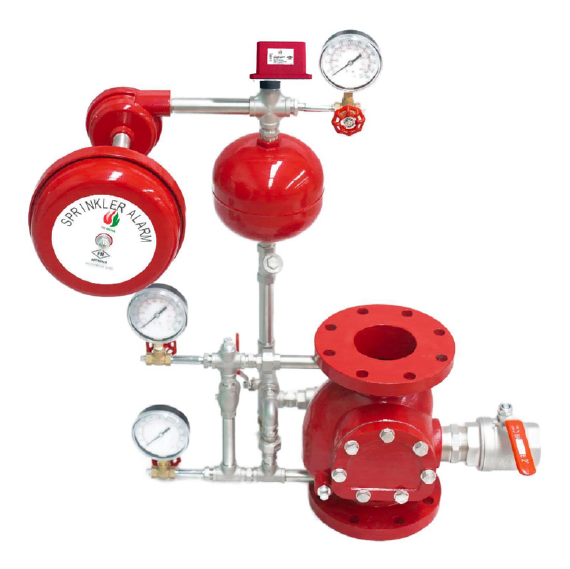

Connection: Flange x Groove; Wet pipe sprinkler alarm valve with retard chamber, pressure gauges, water motor alarm, pressure switch, drain valve and filter; Working Pressure: 300PSI (20.7 bar); FM & UL approved; Flange Standard: ASME/ANSI B16.1 Class 125, ASME/ANSI B16.42 Class 150, BS EN 1092-2 PN16, GB/T9113.1; Groove Standard: AWWA C606, ISO6182-12; Working Temperature: 4-70C / 39.2-158F; Coating: epoxy coated or coating upon request; Body: ductile iron ASTM A-536 65-45-12; Trim: SS304; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300); Trim dimensions a (varies): 340mm, 342mm, 349mm, 415mm, 475mm, 495mm; b (varies): 205mm, 250mm, 274mm, 290mm, 340mm, 368mm; c (varies): 145mm, 160mm, 180mm, 205mm, 240mm, 270mm; d (varies): 110mm, 136mm, 162mm, 195mm, 235mm, 270mm; Face to face L (varies): 239mm, 240mm, 245mm, 316mm, 386mm, 390mm, 438mm, 535mm, 622mm; Part numbers: 9 (see Part Numbers sheet)
Connection: Groove x Groove; Wet pipe sprinkler alarm valve with retard chamber, pressure gauges, water motor alarm, pressure switch, drain valve and filter; Working Pressure: 300PSI (20.7 bar); FM & UL approved; Flange Standard: ASME/ANSI B16.1 Class 125, ASME/ANSI B16.42 Class 150, BS EN 1092-2 PN16, GB/T9113.1; Groove Standard: AWWA C606, ISO6182-12; Working Temperature: 4-70C / 39.2-158F; Coating: epoxy coated or coating upon request; Body: ductile iron ASTM A-536 65-45-12; Trim: SS304; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300); Trim dimensions a (varies): 340mm, 342mm, 349mm, 415mm, 475mm, 495mm; b (varies): 205mm, 250mm, 274mm, 290mm, 340mm, 368mm; c (varies): 145mm, 160mm, 180mm, 205mm, 240mm, 270mm; d (varies): 110mm, 136mm, 162mm, 195mm, 235mm, 270mm; Face to face L (varies): 245mm, 316mm, 386mm, 390mm, 438mm, 535mm, 622mm; Part numbers: 9 (see Part Numbers sheet)
Connection: Flange x Flange; Wet pipe sprinkler alarm valve with retard chamber, pressure gauges, water motor alarm, pressure switch, drain valve and filter; Working Pressure: 300PSI (20.7 bar); FM & UL approved; Flange Standard: ASME/ANSI B16.1 Class 125, ASME/ANSI B16.42 Class 150, BS EN 1092-2 PN16, GB/T9113.1; Groove Standard: AWWA C606, ISO6182-12; Working Temperature: 4-70C / 39.2-158F; Coating: epoxy coated or coating upon request; Body: ductile iron ASTM A-536 65-45-12; Trim: SS304; Size (varies): 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300); Trim dimensions a (varies): 340mm, 342mm, 349mm, 415mm, 475mm, 495mm; b (varies): 205mm, 250mm, 274mm, 290mm, 340mm, 368mm; c (varies): 145mm, 160mm, 180mm, 205mm, 240mm, 270mm; d (varies): 110mm, 136mm, 162mm, 195mm, 235mm, 270mm; Face to face L (varies): 233mm, 236mm, 245mm, 316mm, 386mm, 390mm, 438mm, 535mm, 622mm; Part numbers: 9 (see Part Numbers sheet)

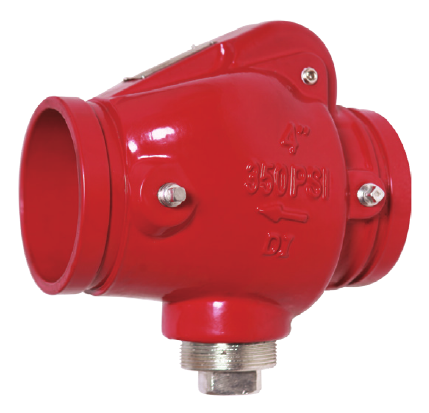

Groove Standard: ANSI/AWWA C606 or Metric; Approvals: UL, FM; Max Working Pressure: 350PSI; Max Testing Pressure: 700PSI; conforms to UL 312 / FM class 1210; Working Temperature: 0-80C / 32-176F; Coating: epoxy coated or coating upon request; Other Connections: Flange*Flange, Groove*Flange, Flange*Groove; Materials: body ductile iron; clapper SS304; seat C95400; seals EPDM; ports P1 Rc1/2 to Rc2, P2 Rc1/4 to Rc1/2, P3 Rc1/2; Size (varies): 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"; L (varies): 169mm, 181mm, 198mm, 214mm, 248mm, 270mm, 325mm, 457mm, 535mm; D1 (varies): 57.15mm, 69.09 / 72.26mm, 84.94mm, 110.80mm, 135.48 / 137.03mm, 160.78 / 163.96mm, 211.6 / 214.4mm, 268.3mm, 318.3mm; D2 (varies): 60.3mm, 73 / 76.1mm, 88.9mm, 114.3mm, 139.7 / 141.3mm, 165.1 / 168.3mm, 216.3 / 219.1mm, 273mm, 323.9mm; B (varies): 7.95mm, 9.53mm, 11.13mm, 12.7mm; C (varies): 15.88mm, 19.05mm; Part numbers: 9 (see Part Numbers sheet)

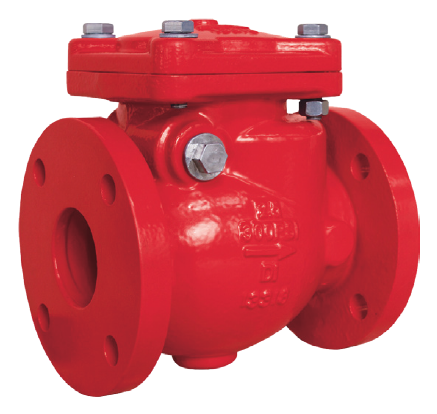

Design Standard: AWWA C508; Flange Standard: ASME/ANSI B16.1 Class 125, ASME/ANSI B16.42 Class 150, BS EN 1092-2 PN16, GB/T9113.1; Face to Face Standard: ASME B16.10; Approvals: UL, FM; Max Working Pressure: 300PSI; Max Testing Pressure: 600PSI; conforms to UL 312 / FM class 1210; Working Temperature: 0-80C / 32-176F; Coating: epoxy coated or coating upon request; Installation: vertical or horizontal, one-way flow; Materials: body, bonnet, disc, rocker arm ductile iron (disc + EPDM); seat ring C95400; stems stainless steel 304; Size (varies): 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"; Other (varies): DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300; L (varies): 203mm, 216mm, 241mm, 292mm, 330mm, 356mm, 495mm, 622mm, 698mm; D (varies): 152mm, 178mm, 191mm, 229mm, 254mm, 279mm, 343mm, 406mm, 483mm; H (varies): 142mm, 148mm, 163.5mm, 172mm, 237mm, 233mm, 301mm, 348mm, 419mm; Part numbers: 9 (see Part Numbers sheet)
